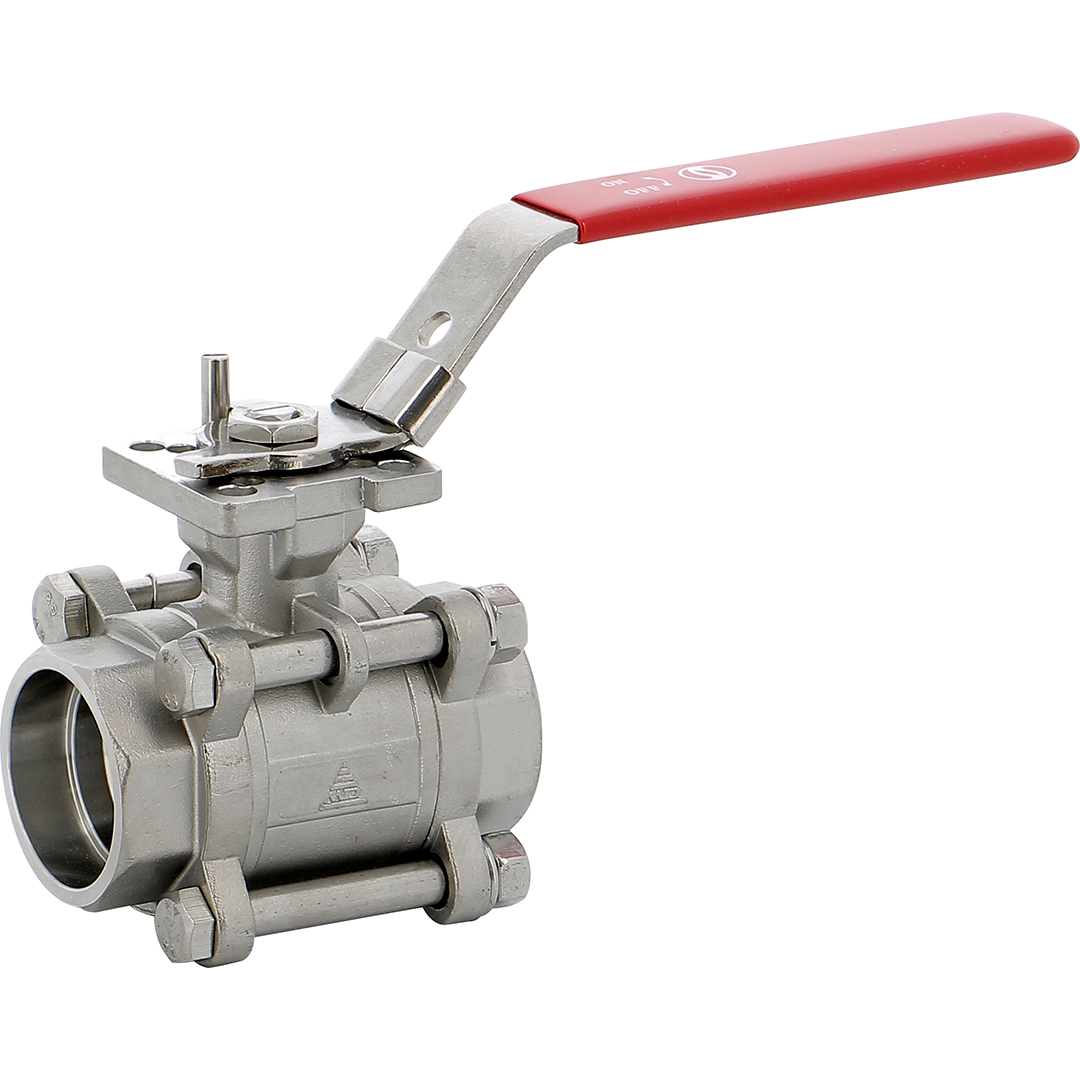

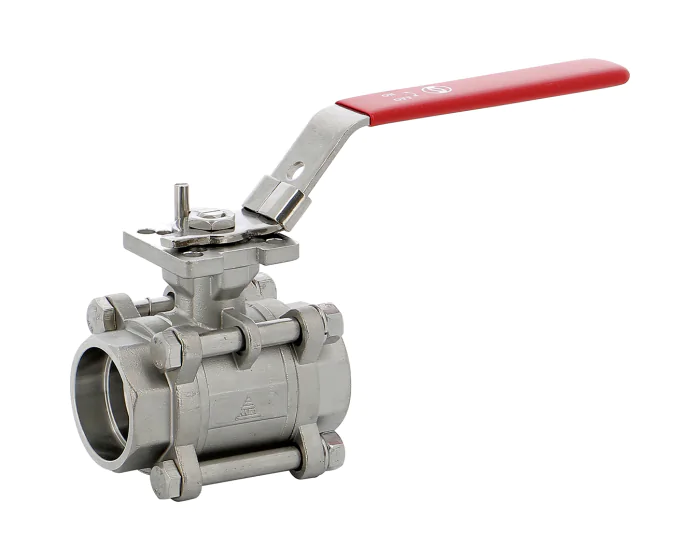

The 749 series ball valve , 3-piece body in stainless steel with ISO pad PN63, welding SW, full bore, for chemical networks, petrochemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516 - ASME B16.34 |
| CE risk category | III Module H |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | 25% Graphite filled PTFE gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 7 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 840.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 17.2 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | Welding SW |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' | 749008 | S1008308 |
€46.54
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN10 - 3/8'' | 749010 | S1008309 |
€46.54
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' | 749015 | S1008310 |
€47.77
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' | 749020 | S1008311 |
€58.81
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' | 749025 | S1008312 |
€83.39
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 | 749032 | S1008313 |
€108.77
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 | 749040 | S1008314 |
€155.77
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' | 749050 | S1008315 |
€218.41
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 | 749065 | S1008316 |
€433.77
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' | 749080 | S1008317 |
€535.84
(excl. btw)
|
add to cart |
| Welding SW Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' | 749100 | S1008318 |
€1,138.00
(excl. btw)
|
add to cart |
